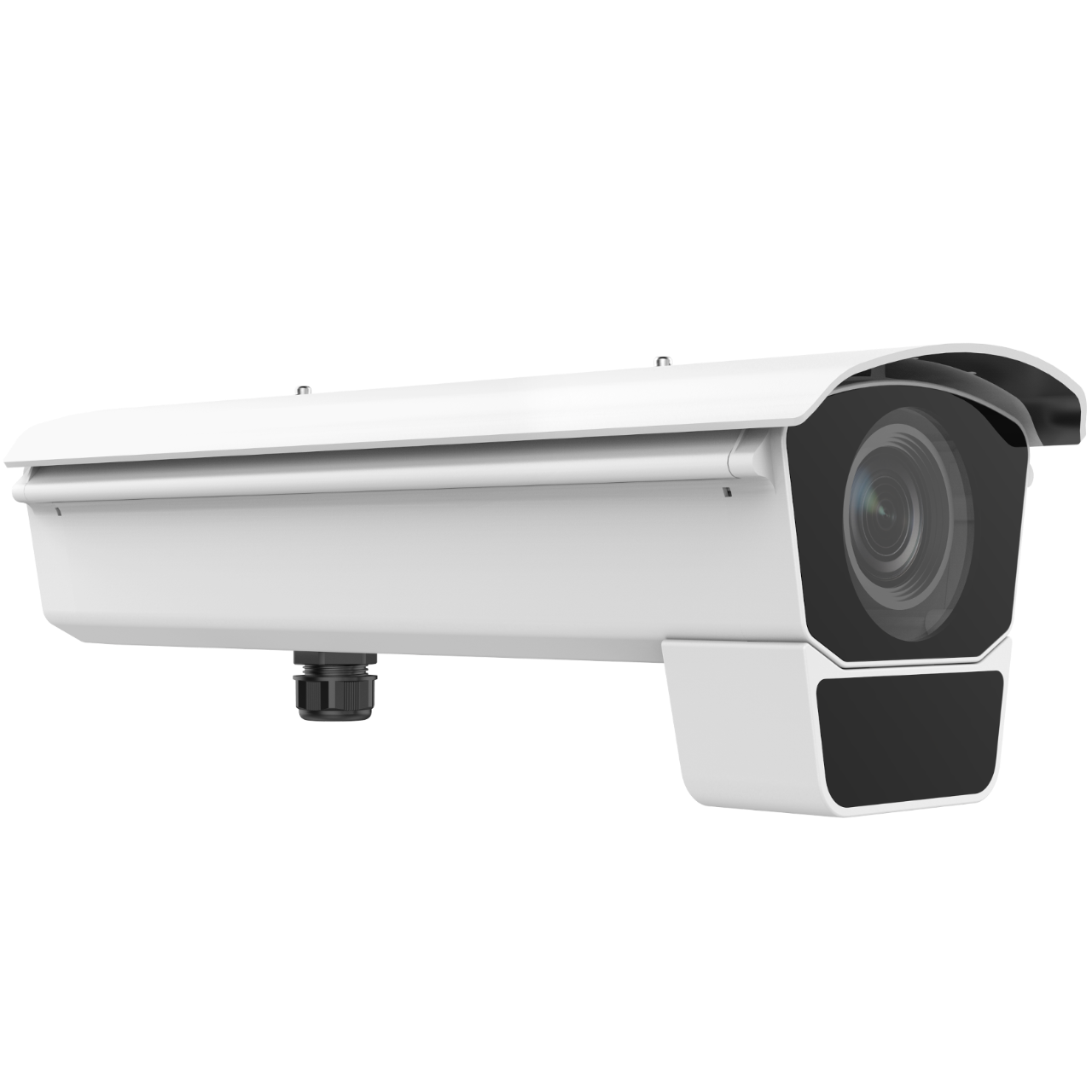

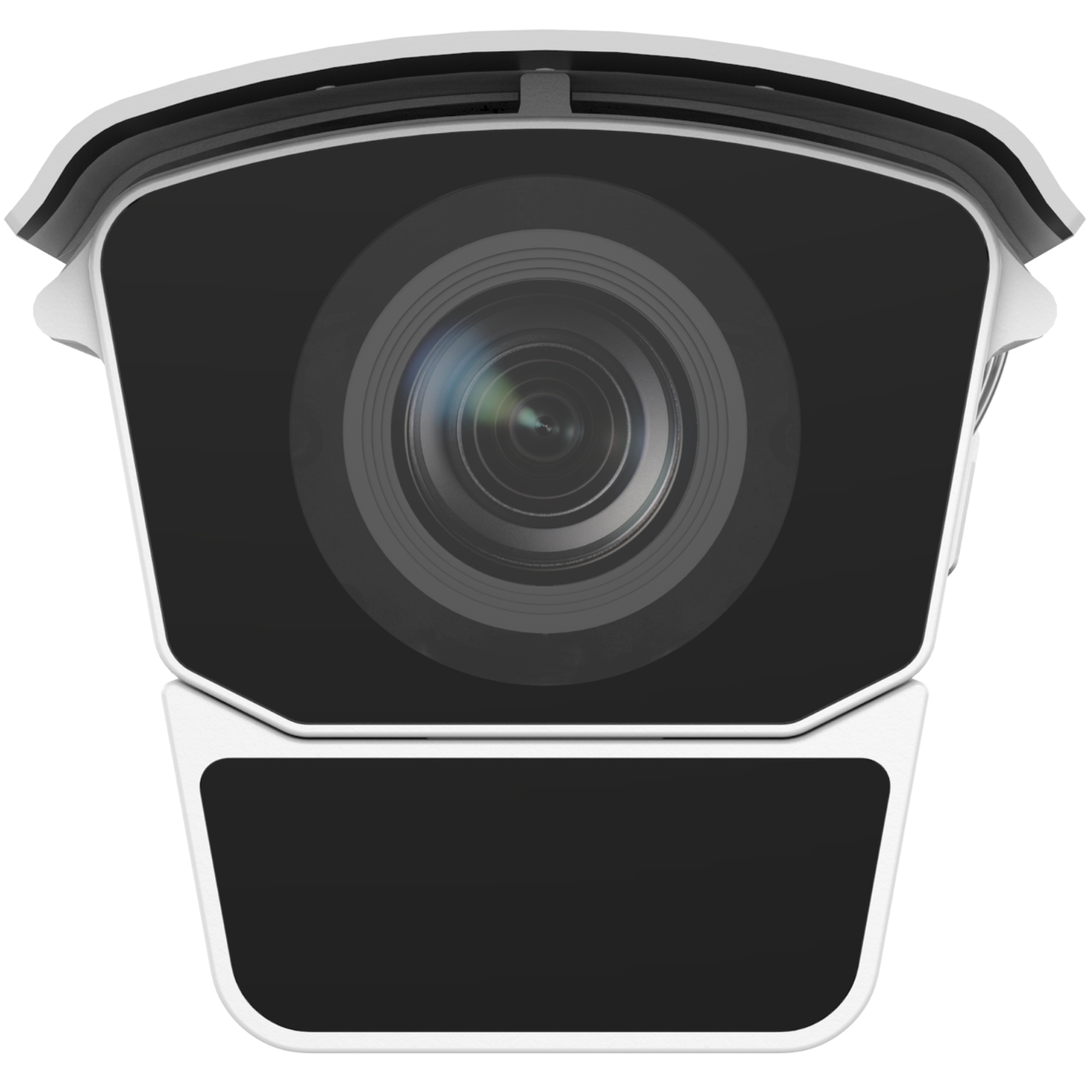

iDS-2CD7026G0/EP-IHSY

2MP DeepinView ANPR Box With Housing Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 WDR technology
  • License Plate Recognition
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP66) and vandal proof (IK10)

₨130,000.00

Compare
Add to wishlist
24 People watching this product now!
  • Warranty 1 year

More details

Specification

Camera
Image Sensor 1/1.8
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Slow Shutter Yes
Day & Night Mode IR cut filter Blue glass module to reduce ghost phenomenon
Lens
Focal Length & FOV 3.8 to 16 mm, horizontal FOV: 109.1° to 29.6°, vertical FOV: 61.3° to 16.8°, diagonal FOV: 125.1° to 33.9° 11 to 40 mm, horizontal FOV: 39.1° to 12.1°, vertical FOV: 21.4° to 6.8°, diagonal FOV: 45.8° to 13.9°
Lens Mount CS mount
Iris Type P-iris
Aperture 3.8 to 16 mm: F1.4 11 to 40 mm: constant F1.4 throughout the zoom range
Focus Manual
Video
Main Stream 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Bit Rate 32 Kbps to 8 Mbps
Video-Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.265 and H.264 encoding
Region Of Interest (ROI) 4 fixed regions for each stream
Target-Cropping Yes
Network
Network-Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Safety Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Day/Night Mode Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Target Cropping Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Audio 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1A)
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Heater -H: yes
Ethernet Interface 1 RJ45 100 M/1000 M self-adaptive Ethernet port
RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event Intrusion detection, scene change detection, audio exception detection, defocus detection Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
General
Dimension 465.3 × 169.2 × 164.7 mm (18.3
Power Supply 24 VDC ± 20%, 0.9 A, max. 21.6 W, three-core terminal block 24 VAC ± 20%, 0.93 A, max. 22.1 W, three-core terminal block PoE: 802.3bt, Type3, Class 5, 42.5V to 57 V, 0.58 A to 0.44 A, max. 24.6 W
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
Firmware Version 5.5.60
General Function Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Startup And Operating Conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Package Dimension 615 × 360 × 225 mm (24.2
With Package Weight Approx. 6000 g (13.2 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Heater. Yes
Approval
Security IP67, IK10
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio-Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio Type Mono sound
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types
Road Traffic And Vehicle Blocklist and allowlist: up to 10,000 records
Detection Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
Metadata Metadata of road traffic is supported
Illuminator
Supplement Light Type IR
Supplement Light Range 3.8 to 16 mm: 80 m 11 to 40 mm: 120 m
Smart Supplement Light Yes
IR-Wavelength 850 nm
DORI
DORI Wide: 3.8 to 16 mm: D: 42.9 m, O: 17.0 m, R: 8.6 m, I: 4.3 m 11 to 40 mm: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.5 m Tele: 3.8 to 16 mm: D: 155.2 m, O: 61.6 m, R: 31.1 m, I: 15.5 m 11 to 40 mm: 382.7 m, O: 151.9 m, R: 76.6 m, I: 38.3 m
